量程：50Kg,100Kg,150Kg,200Kg,250Kg,300Kg,500Kg,600Kg,750Kg
適用于醫療稱重
特征：
符合OIML認證指標，分度值達5000
角差修正
IP7防護
雙剪切梁或三梁結構
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±10%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±0.02mV/V | Reference Max.Platform Size 大秤臺尺寸 | 750*750mm |
| Non-linearity 非線性 | <±0.017% | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Repeatability 重復性 | <±0.017% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ |
| Hysteresis Error 滯后 | <±0.017% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.02% | Breaking Overload 極限過載 | 200% of full scale |
| Input Resistance 輸入電阻 | 415Ω±15 | IP Rating 防護等級 | IP67 |
| Outnput Resistance 輸出電阻 | 350Ω±3 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Aluminum 鋁合金 | ||

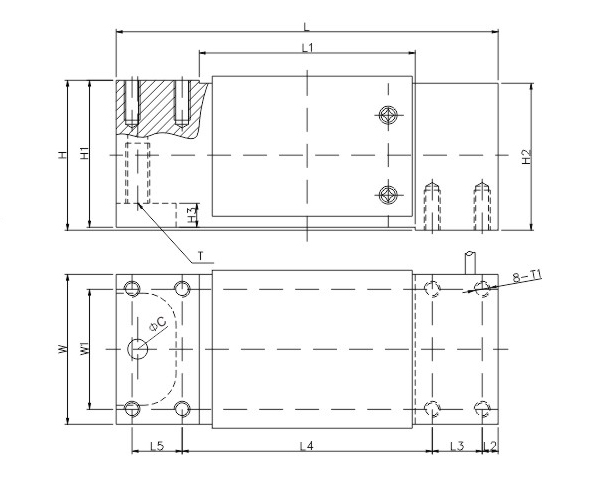

| DIMENSIONS 尺寸 | ||||||||||||||
| RATE CAPACITY 量程 | L | L1 | L2 | L3 | L4 | L5 | W | W1 | H | H1 | H2 | H3 | T | T1 |
| kg/mm 50-1000 | 191 | 108 | 8 | 25 | 125 | 25 | 75 | 60 | 75 | 73.5 | 73.5 | 12 | M12深30 | M8深20 |
| lb/inches(conversion of above dimensions 由以上尺寸轉換) | ||||||||||||||
| 110.23-2204.6 | 7.52 | 4.25 | 0.31 | 0.98 | 4.92 | 0.98 | 2.95 | 2.36 | 2.95 | 2.89 | 2.89 | 0.47 | M12DP 1.18 | M8DP 0.79 |
